Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White

Shakespeare 5101 8 Classic VHF Antenna w/15' RG-58 Cable - White

5101-SHA

Regular price $99.99 Sale price$88.95
/

  • In stock, ready to ship
  • Inventory on the way
  • Free Shipping On Orders Over $99

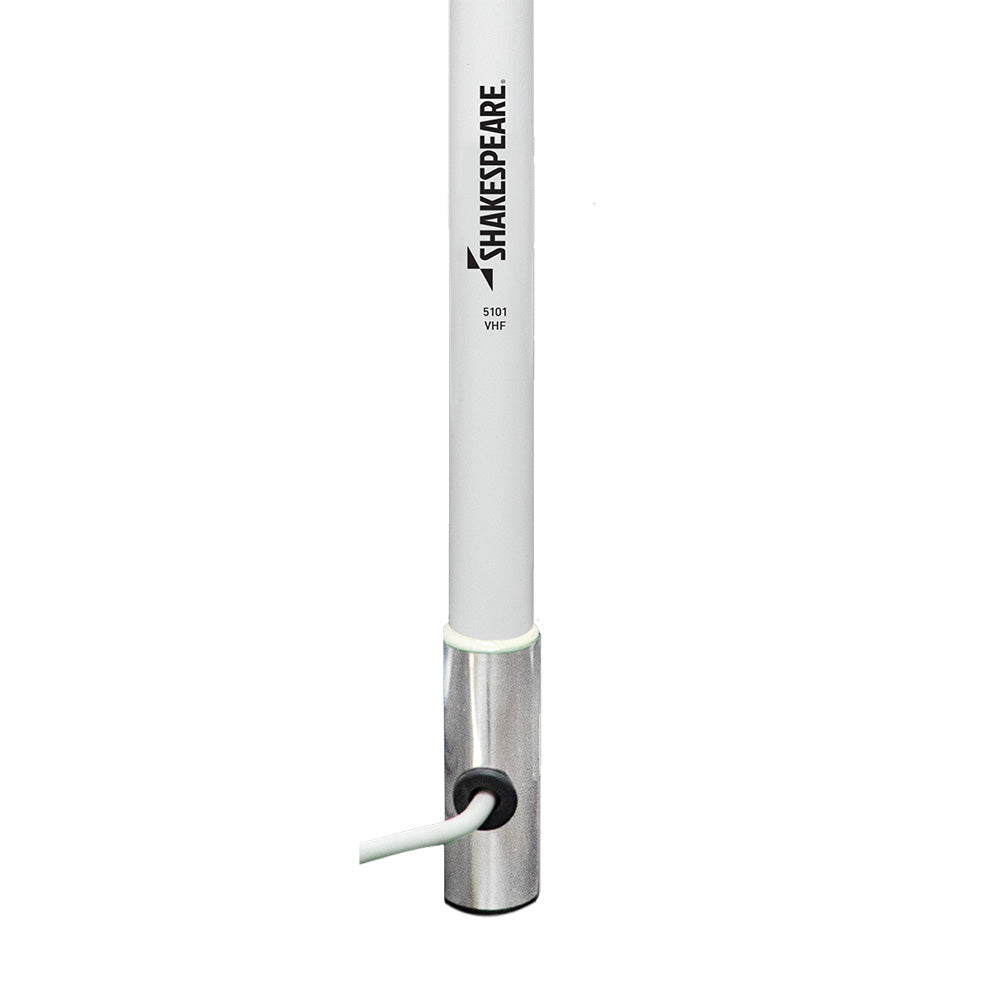

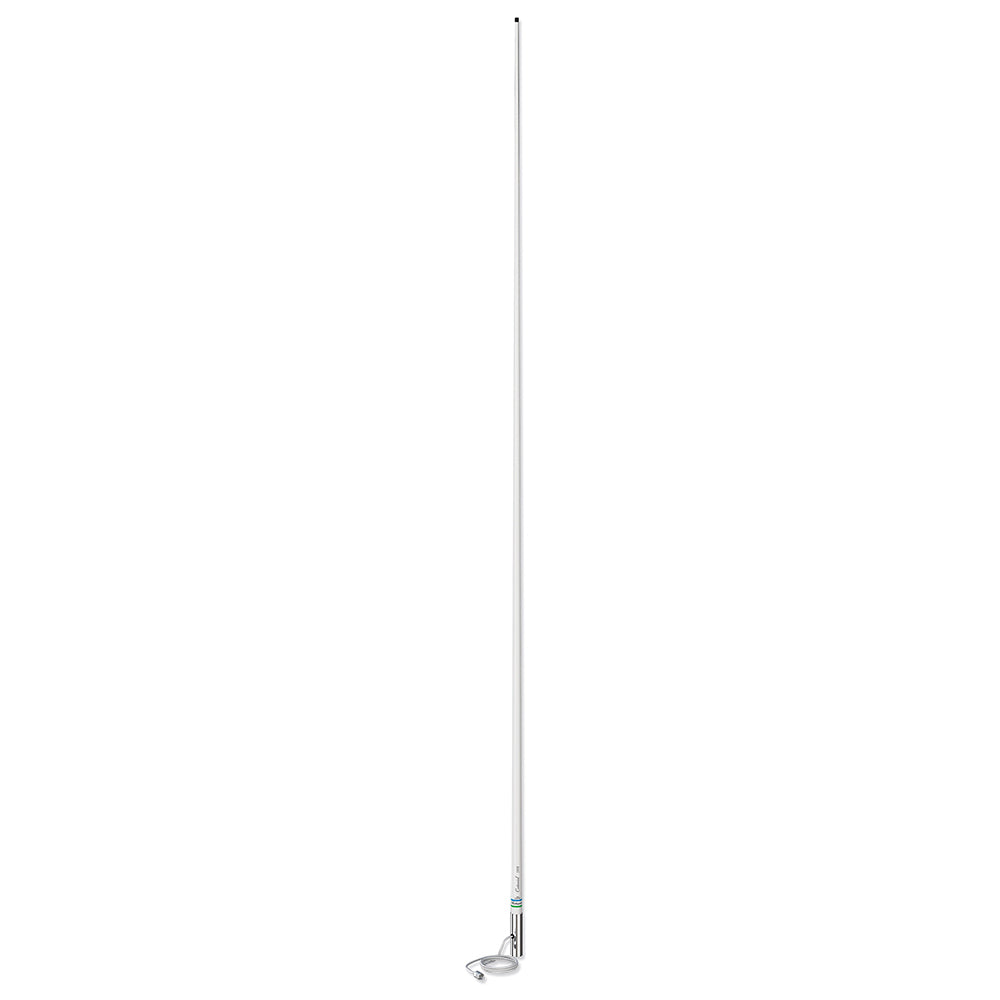

5101 8’ Classic VHF Antenna with 15' RG-58 Cable - White - Reduced Length Version

END-FED WITH MATCHING STUB

A standard of excellence in an economical antenna! Shakespeare brings you the best of the high-end features in an 8' antenna with a brass element and a smooth, high gloss, polyurethane finish that wont turn yellow in the sun. This antenna delivers not only performance, but superb value.

Features:

  • Brass and copper elements
  • Chrome-plated brass ferrule with standard 1"-14 thread
  • Includes 15' RG-58 cable and a PL-259 connector
  • Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
  • One section
  • Shakespeare Limited Warranty: 2 years

Technical Specifications:

  • Frequency:    VHF Marine Band
  • Bandwidth:    (within 2.0 1 SWR): 5 MHz
  • SWR:    1.5:1 at 156.8 MHz
  • Impedance:    (Ohms): 50
  • Gain:    6 dB
  • Max. Input (Watts):    50
  • DC Ground:    YES - however, the antenna will read "open circuit" when tested with ohmeter.
  • Termination:    15' RG-58 cable
  • Height (feet):    8'
  • Polarization:    Vertical
  • Radiation pattern:    Omni - directional

Specifications:

  • Antenna Band: VHF
  • Color: White
  • Construction: Fiberglass
  • Ferrule Type: Chrome Plated
  • Length (Inches): 96"
  • Box Dimensions: 2"H x 2"W x 95"L WT: 3.8 lbs
  • UPC: 719441100490

Quick Guide (pdf)
